DISCHARGE SYSTEMS FOR PELLETS

RS4 / RS8 pellet suction system

fully automatic back flushing

Discharge systems for pellets

RS4 / RS8 pellet suction system

The RS 4 / RS 8 pellet suction system creates more space in your fuel store. Thanks to the fact that the suction probes are flexible in terms of location, it is possible to make optimal use of every room shape. The switchover between suction probes is automatic. Rule of thumb: Plan for one suction probe for every 1 m² pellet storage area.

Advantages at a glance:

  • easy to assemble
  • no sloping slides necessary in the bunker
  • more store space (30%)
  • automatic switching between the probes
  • automatic back flushing
  • maintenance-free system

Information/advice

You would like to have further product information or you have general questions regarding our company?

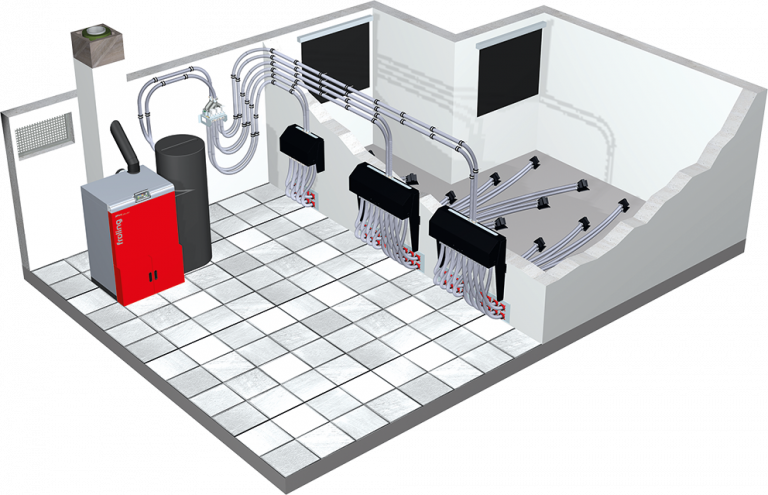

Triple RS 4 / RS 8 pellet suction system

With the combination of up to three RS4 and/or RS8, large storerooms can be equipped with up to 24 suction probes, making it possible to empty, largely without sloping floors. The controller takes over the pellet boiler, which automatically changes the probes in specified cycles to ensure that the storeroom is uniformly emptied.
If the storeroom is not being uniformly emptied, individual probes can be locked separately so that they are no longer used to convey material. If there is an unexpected fault at the suction point, an attempt is made to remedy the fault
with a fully automatic reversal of the air supply (back flushing).
