PELLET BOILER

PECO

15 – 35 kW

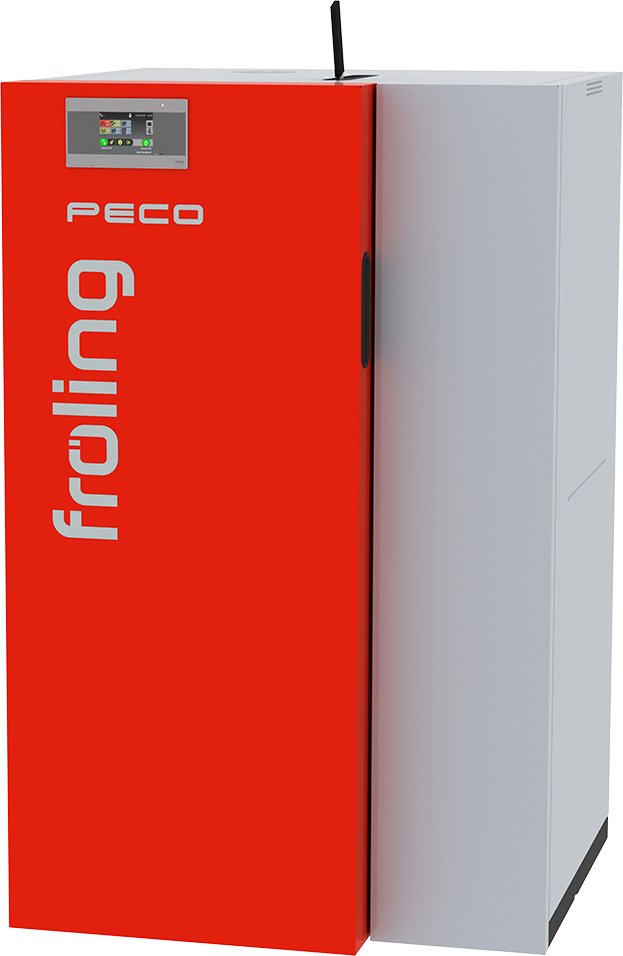

Pellet boiler

PECO

Occupying just 0.64 m² of space, the PECO pellet boiler sets new standards. The new PECO stands out due to its quiet operation and ease of use, combined with low emissions and very low energy consumption. Thanks to its high energy efficiency the PECO is particularly suitable for low-energy and passive houses.

Information/advice

You would like to have further product information or you have general questions regarding our company?

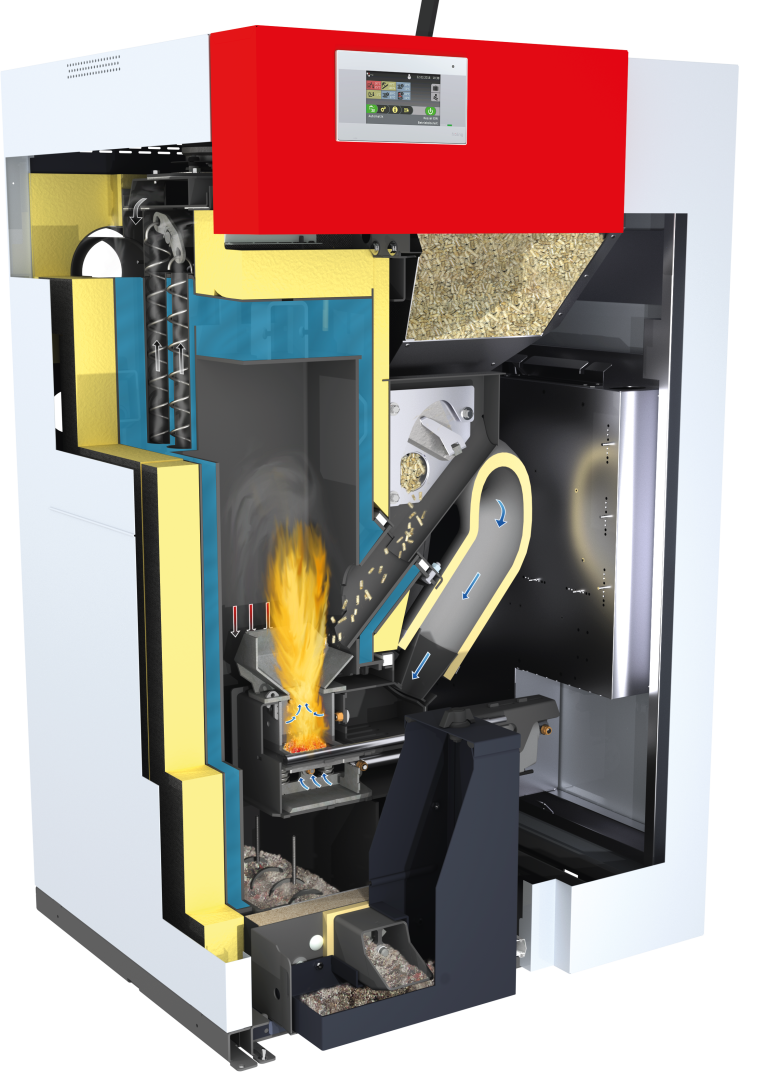

The latest technology

Speed-controlled, quiet induced-draught fan with function monitor

Speed-controlled, quiet induced-draught fan with function monitor

Lambda probe

Lambda probe for optimal combustion

Manual cleaning of exchanger

Manual cleaning of exchanger by activating a lever

Pellet burner

High quality pellet burner

High-quality insulation

High-quality insulation

Ash removal

Automatic sliding grate for ash removal

4.3" touchscreen display

4.3" touchscreen display for easy and intuitive operation

pellet store

Generously dimensioned pellet store

Double protection system

Double protection system for maximum burnback protection

Combustion air supply

Combustion air supply (optionally room air-independent)

Automatic ignition

Automatic ignition

Automatic ash removal

Automatic ash removal in airtight ash container

Keep track of everything with the Froling App

The Froling App allows you to check and control your Froling boiler online from
anywhere, at any time. You can read and modify the main status information and settings easily and conveniently online. You can also specify which status messages you want to be informed about via SMS or e-mail (e.g. when the ash box is to be emptied or in the event of a fault message).
The app is available in the Android Play Store and iOS App Store.

Advantages

  • Simple and intuitive operation of the boiler
  • Status information can be called up and changed within seconds
  • Individual naming of the heating circuits
  • Changes of status are notified directly to the user (e.g. via
    e-mail or push notifications)
  • No additional hardware required (such as an Internet gateway)





Smart Home

Loxone

Combine your Froling heating system with the Loxone Miniserver and the new Froling Extension and implement individual boiler control on the basis of the single room control of the Loxone Smart Home.

Modbus

Via the Froling modbus interface, the system can be integrated
into a building management system.

Brochures / EU Label

PECO

Technical specifications

Technical data - PECO 15 20 25 30 35
Nominal output  [kW] 15 20 25 30 35
Output range [kW] 4.1 – 15 4.1 – 20 7.2 – 25 7.2 – 30 7.2 – 35
Energy (ErP) label1 A+ A+ A+ A+ A+
Electrical connection   [V/Hz/A] 230 V / 50 Hz / protected by C16A fuse 230 V / 50 Hz / protected by C16A fuse 230 V / 50 Hz / protected by C16A fuse 230 V / 50 Hz / protected by C16A fuse 230 V / 50 Hz / protected by C16A fuse
Boiler weight   [kg] 250 250 380 380 380
Pellet container capacity   [l] 41 41 76 76 76
Ash container capacity  [l] 20 20 23 23 23
Minimum flow  [l/h] 260 340 430 430 430
Recommended approximate buffer volume  [l] 300 500 500 700 700
PECO

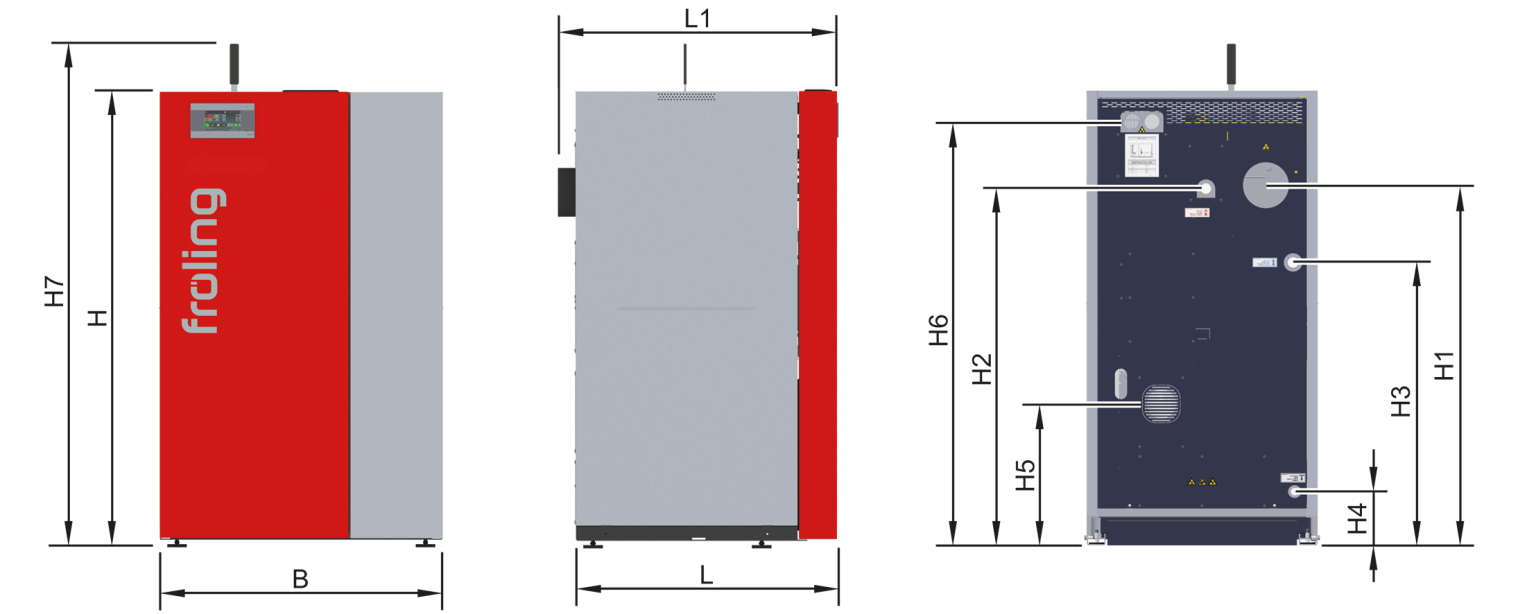

Dimensions

Dimensions - PECO [mm] 15 20 25 30 35
L Length of boiler 690 690 850 850 850
L1 Total length including flue pipe connection 740 740 890 890 890
B Width of boiler 750 750 750 750 750
H Height of boiler 1210 1210 1480 1480 1480
H1 Height including<br>central flue pipe connection 940 940 1170 1170 1170
H2 Height of flow connection 930 930 1160 1160 1160
H3 Height of return connection 750 750 920 920 920
H4 Height of drainage connection 95 95 175 175 175
H5 Height of supply air connection (for room air-independent operation) 390 390 460 460 460
H6 Height of suction system connection 1110 1110 1380 1380 1380
H7 Height of boiler with WOS lever 1335 1335 1600 1600 1600

Technical documentation

Bedienungsanleitung PECO
17. junija 2020 B1610020 [ES]
Bedienungsanleitung PECO
17. junija 2020 B1610020 [EN]
Bedienungsanleitung PECO
17. junija 2020 B1610020 [FR]
Bedienungsanleitung PECO
17. junija 2020 B1610020 [IT]
Bedienungsanleitung PECO
10. avgusta 2021 B1610020 [HR]
Bedienungsanleitung PECO
15. julija 2021 B1610020 [SL]
Bedienungsanleitung Raumbediengerät RBG 3200
3. januarja 2023 B0640522 Additional Info: [ab V50.04-B05.20] [EN]
Bedienungsanleitung Raumbediengerät RBG 3200
3. januarja 2023 B0640522 Additional Info: [ab V50.04-B05.20] [ES]
Bedienungsanleitung Raumbediengerät RBG 3200
3. januarja 2023 B0640522 Additional Info: [ab V50.04-B05.20] [FR]
Bedienungsanleitung Raumbediengerät RBG 3200
3. januarja 2023 B0640522 Additional Info: [ab V50.04-B05.20] [IT]
Montageanleitung PECO
5. januarja 2023 M2320121 [ES]
Montageanleitung PECO
5. januarja 2023 M2320121 [FR]
Montageanleitung PECO
5. januarja 2023 M2320121 [IT]
Montageanleitung PECO
5. januarja 2023 M2320121 [HR]
Montageanleitung PECO
5. januarja 2023 M2320121 [SL]
Montageanleitung PECO
5. januarja 2023 M2320121 [SV]
