FIREWOOD BOILER
22 – 45 kW
FIREWOOD BOILER
Firewood boiler von 22 bis 45 kW

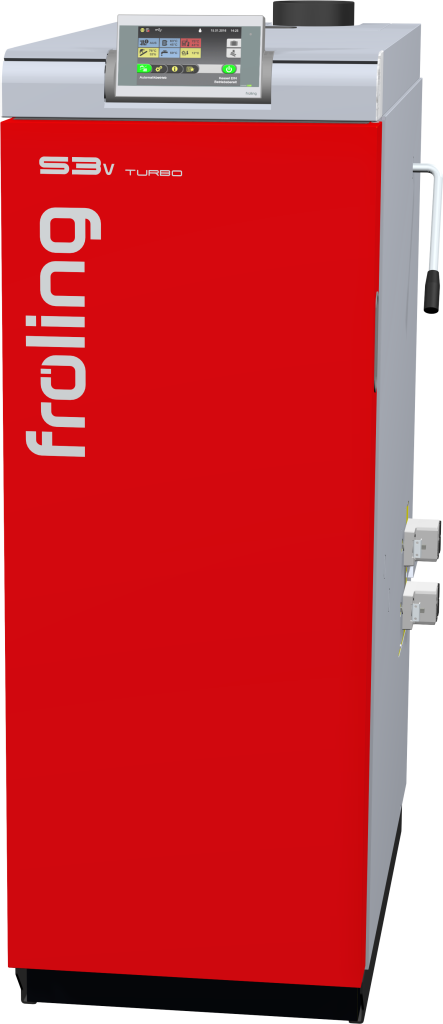

Fröling has launched the S3v Turbo, a product that meets all the demands of a modern log boiler while offering an unbeatable price-performance ratio. This means that customers no longer have to compromise on Austrian quality when purchasing a high-quality yet cost-effective wood gasification boiler. Fröling manufactures its boilers in-house and has incorporated a wealth of experience into the development of the S3v Turbo.
The S3v Turbo offers important advantages right from the moment it is brought into your heating room. Thanks to its compact design and minimal space requirements, installation is easy even in confined heating rooms.

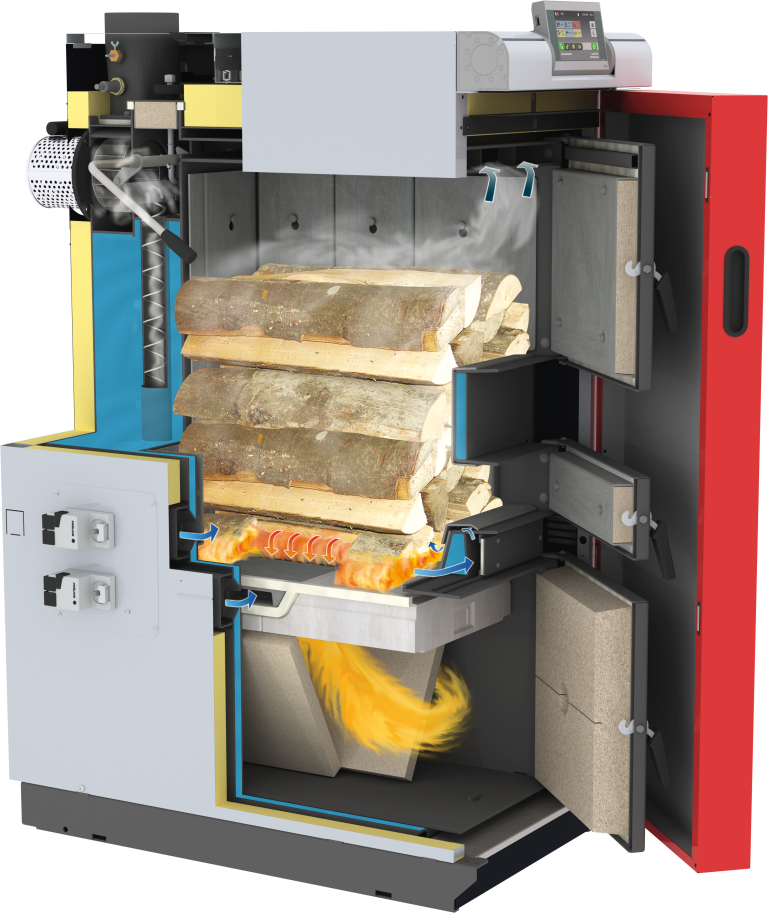

The latest technology
Lambda probe for optimum combustion
Speed-regulated induced draught fan
WOS system
Efficiency Optimisation System
Large fuel loading chamber
for logs up to half a metre long (up to 56 cm)
Servo-motors for automatic control of primary
and secondary air
7” touchscreen for simple and intuitive operation
Carbonisation gas extraction system prevents
smoke escaping during reloading
Suspension lip to protect the inner wall of the boiler
and guarantee that the logs slide through
Large fuel loading chamber doors
Quick heating-up with special air ducts (optional: automatic ignition device))
Optimised V-combustion chamber made of silicon carbide for even better efficiency and lower emissions
Generously proportioned cleaning opening for convenient ash removal from the front
Individual control unit of the heating system
Lambdatronic 3200 control unit
Fröling provides a future-oriented Lambdatronic 3200 and a new 7“ touch display. Intelligent control management makes it possible to connect up to 18 heating circuits, up to 4 storage tanks and up to 8 hot water storage tanks. The control unit ensures that the operating statuses are clearly shown. The menu structure is ideally organised to allow easy operation. All essential functions can be selected by simply pressing icons on the large colour display.
Advantages:
- Precise combustion control by a Lambda control using a Lambda probe
- Connection for up to 18 heating circuits, 8 water heaters and up to 4 storage tank management systems
- Integration capability for a solar panel system
- LED frame for status display with illuminated presence detection
- Simple and intuitive operation
- Various smart home options (such as Loxone)
- Remote control from the living room (remote control 3200 and RGB 3200 Touch) or via Internet (froeling-connect.com)
Keep track of everything with the Froling App
The Froling App allows you to check and control your Froling boiler online from
anywhere, at any time. You can read and modify the main status information and settings easily and conveniently online. You can also specify which status messages you want to be informed about via SMS or e-mail (e.g. when the ash box is to be emptied or in the event of a fault message).
The app is available in the Android Play Store and iOS App Store.
Advantages
- Simple and intuitive operation of the boiler
- Status information can be called up and changed within seconds
- Individual naming of the heating circuits
- Changes of status are notified directly to the user (e.g. via
e-mail or push notifications) - No additional hardware required (such as an Internet gateway)
Smart Home
Loxone
Combine your Froling heating system with the Loxone Miniserver and the new Froling Extension and implement individual boiler control on the basis of the single room control of the Loxone Smart Home.
Modbus
Via the Froling modbus interface, the system can be integrated
into a building management system.
Brochures / EU Label
Tecnical data
* Efficiency label (boiler + controller)

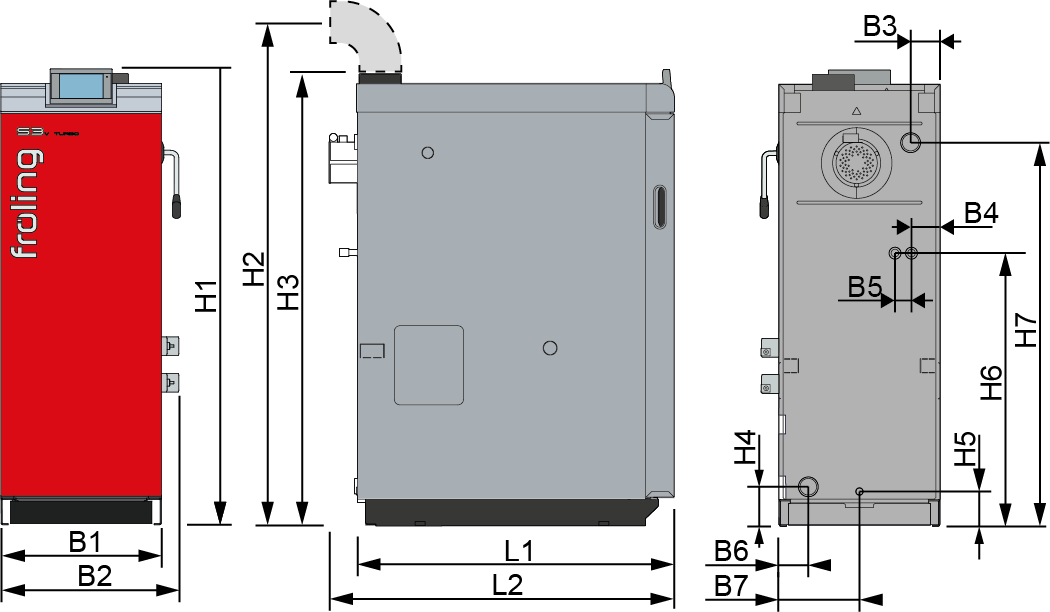

Dimensions

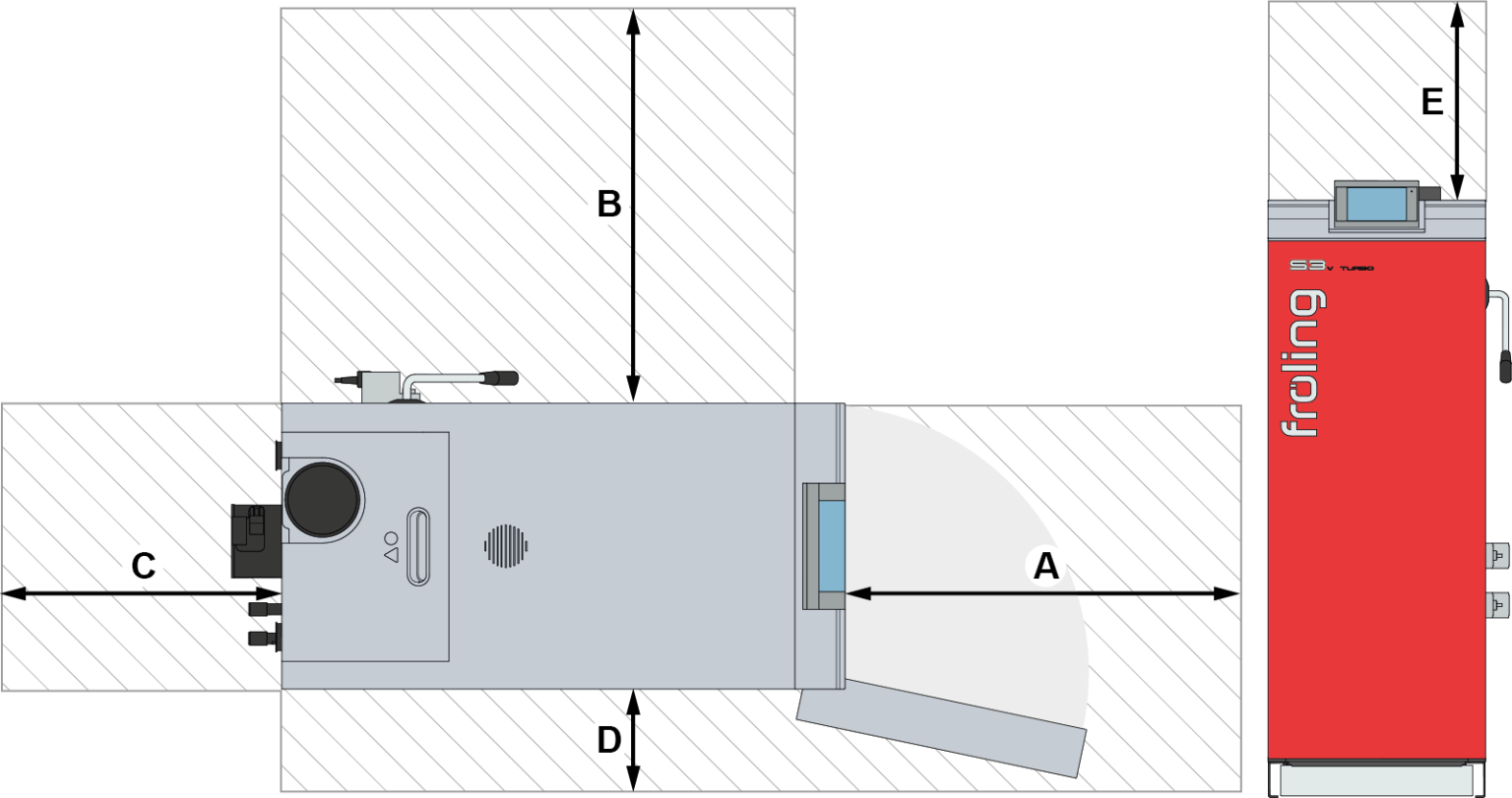

Operating and maintenance areas
* The boiler should be installed on one side (B or D) with a distance of at least 800 mm from the wall to allow easy access for connecting the appliance and for maintenance work (e.g. induced draught).
